Quiet & Compact Professional Embroidery Solutions
![](images/-isp-logo-omni-.png)
![](images/feature-smaller-ist.jpg)
![](images/banner-ist-printer-6.png)
*By providing a telephone number and submitting the form
you are consenting to be contacted by SMS text message.
Message & datarates may apply.
Reply STOP to opt out of further messaging.
you are consenting to be contacted by SMS text message.
Message & datarates may apply.
Reply STOP to opt out of further messaging.
Every iStitch Model Features:
● Wireless design transfer● Laser trace system
● Large easy to use modern touchscreen control panel
● 3D Puff Advanced hat sewing system
● 97 built-in fonts
● Quiet operation
![](images/istitch-feature-3.png)

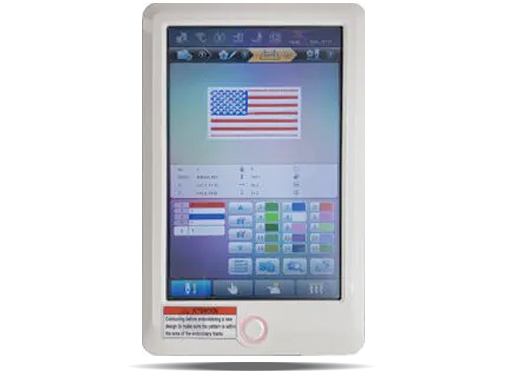

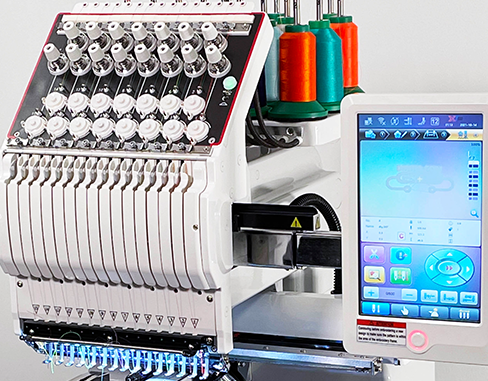

Easy To Use Touchscreen Control Panel Included
The high definition touch-screen LCD control panel makes editing & design previewing easy. Satin width adjustment & the 200 Million Stitch Memory give you the ability to create flawless embroidery at any size!
• User-friendly menu makes it easy to read and quickly identify production information• On-screen prompts guide you through every step of the process
• One-Touch Design Tracing – ensure accurate placement before
ever sewing a stitch by simply pressing a button
• Scale size of designs up or down
• Rotate and Mirror Images
![](images/screen-on-4.png)
iStitch Model | 1501C | 1501C-CRD | 1503 | 2001C |
---|---|---|---|---|
Number of Needles | 15 needles | 15 needles | 15 needle heads x 3 | 20 needles |
Interface | 10” high resolution color touch screen | 10” high resolution color touch screen | 10” high resolution color touch screen | 10” high resolution color touch screen |
Speed | 1,000 stitches per minute top speed | 1,000 stitches per minute top speed | 1,000 stitches per minute top speed | 1,000 stitches per minute top speed |
Sewing Area | 14” x 8” maximum sewing area | 14” x 8” maximum sewing area | 320mm x 400mm maximum sewing area | 14” x 8” maximum sewing area |
Recovery | Auto recovery of design after power outage | Auto recovery of design after power outage | Auto recovery of design after power outage | Auto recovery of design after power outage |
Input | USB, ethernet, and wireless design input | USB, ethernet, and wireless design input | USB, ethernet, and wireless design input | USB, ethernet, and wireless design input |
Color Features | Automatic color change | Automatic color change | Automatic color change | Automatic color change |
Thread Trimming | 25” Width x 42” Length x 18” Height |
25” Width x 42” Length x 18” Height |
10ft Width x 6ft Length x 6ft Height |
56" x 39" x 24" |
Thread Detection | Automatic bobbin and upper thread break detection | Automatic bobbin and upper thread break detection | Automatic bobbin and upper thread break detection | Automatic bobbin and upper thread break detection |
Weight | Machine:90 Lbs/Stand:40 Lbs | Machine:90 Lbs/Stand:40 Lbs | Machine: 68” x 56” x 66” | Machine:90 Lbs/Stand:40 Lbs |
Dimensions | Machine: W 21.5" x D 22" x H 27" / Stand W19" x D24" x H30" | Machine: W 21.5" x D 22" x H 27" / Stand W19" x D24" x H30" | Machine: 68” x 56” x 66” | Machine: W 21.5" x D 22" x H 27" / Stand W19" x D24" x H30" |
Power Consumption | 110v/150w (standard wall plug) | 110v/150w (standard wall plug) | 110v/300w (standard wall plug) | 110v/150w (standard wall plug) |
